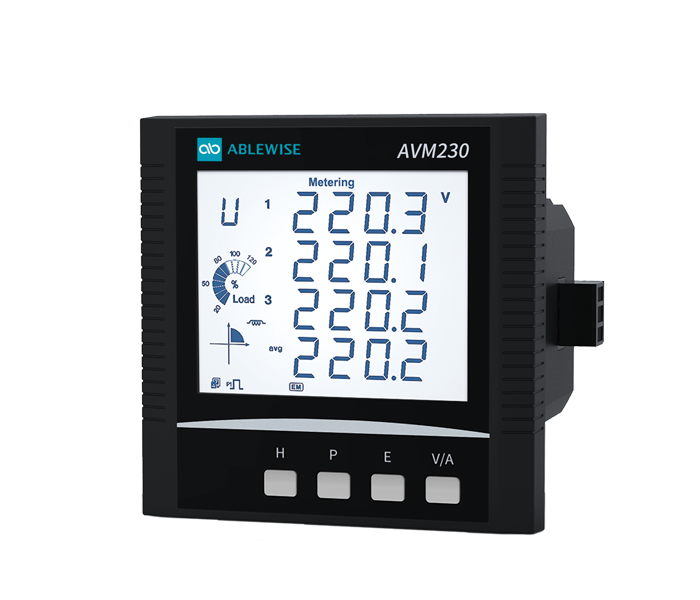

AVM230 is a cost effective, multi-function power meter that combines high-performance. It’s easy to integrate into panel or device monitoring applications. With multiple communication options including Modbus-RTU, PROFIBUS through optional expansion modules and revenue grade accuracy.It can be configured as either a panel-mount device, as a Din rail mount transducer.It has RMS measurement, four-quadrant power metering, power quality analysis, TOU, alarm, max/min value, and data logging functions.
| Parameters | Accuracy | Resolution | Range |
| Voltage | 0.2% | 0.1V | 10V～1000 kV |
| Current | 0.2% | 0.001A | 0～50000 A |
| Current Demand | 0.5% | 0.001A | 0～50000 A |
| Active Power | 0.5% | 1W | -9999 MW～9999 MW |
| Reactive Power | 0.5% | 1 var | -9999 Mvar~9999 Mvar |
| Apparent Power | 0.5% | 1VA | 0～9999 MVA |
| Power Demand | 0.5% | 1W | -9999 MW～9999 MW |
| Reactive Power Demand | 0.5% | 1 var | -9999 Mvar~9999 Mvar |
| Apparent Power Demand | 0.5% | 1VA | 0～9999 MVA |
| Power Factor | 0.5% | 0.001 | -1.0～1.0 |
| Frequency | 0.2% | 0.01Hz | 45.00～65.00 Hz |
| Active Energy | 0.5% | 0.1 kWh | 0～99999999.9 kWh |
| Reactive Energy | 0.5% | 0.1 kvarh | 0～99999999.9 kvarh |
| Apparent Energy | 0.5% | 0.1 kVAh | 0～99999999.9 kVAh |
| Harmonics | 1.0% | 0.01% | |
| Running Time | 0.01h | 0～9999999.99 h |
|
Metering Phase-to-Neutral Voltage, Line-to-Line Voltage, Current Active Power, Reactive Power, Apparent Power, Power Factor Frequency Current Demand and Power Demand Load Nature Four Quadrant Power and Energy Max/Min Record Max/Min Parameter Value and Time Stamp Parameter Sources: Voltage, Current, Power, Frequency, etc Max/Min Value can be Reset Power Quality Voltage Unbalance, Current Unbalance THD, TOHD, TEHD and Individual Harmonics to 63rd Crest Factor, THFF, K Factor Voltage and Current Phase Angles Time of Use (TOU) Four Tariffs, 12 Seasons, 14 Schedules Weekends and 10-Year Holiday Settings DST Function Data Logging Two Groups Historical Data Logs Available in 2 MB Record Metering Parameters with Time Stamp Metering Parameter with Programmable |
Alarms Over or Under Setting Limit Up to 50 Power Measurement Parameters can be Set Alarm can Trigger the Relay Output, Screen Flashing and Alarm Record Multiple I/O Functions Digital Input; Monitor Switch Status; SOE Record Relay Output：Relay Command Control Output ON/OFF; Limit Alarm Control Output Communications Modbus RTU Protocol via RS485 Dual RS485 Ports (Optional) PROFIBUS DP Display Large LCD, White Backlight View Metering Parameters, Load Nature, Energy, Power Quality, etc Energy and Energy Record Bi-Directional and Four Quadrant Energy Single-Phase Energy Daily Energy Record
|
