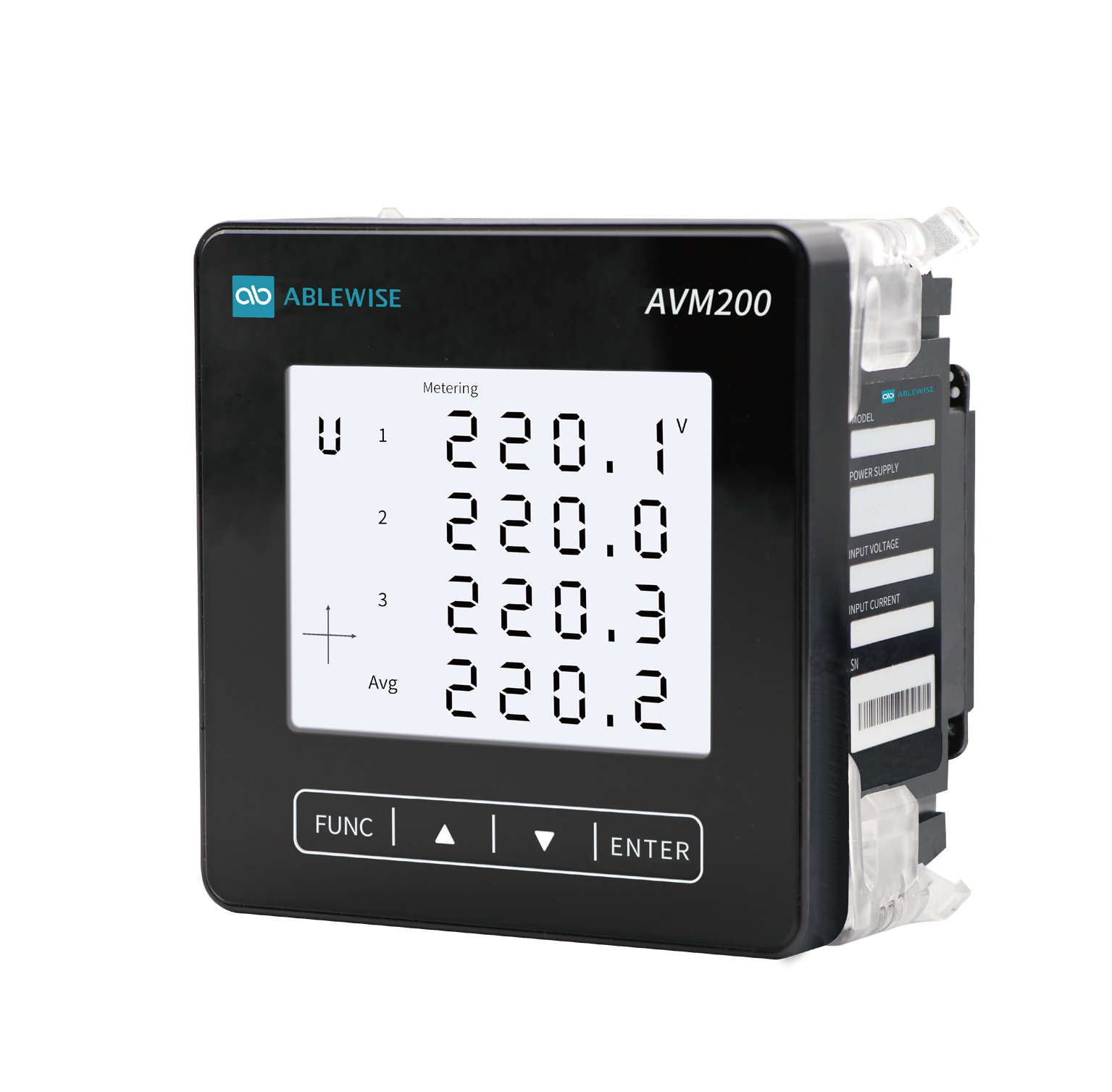

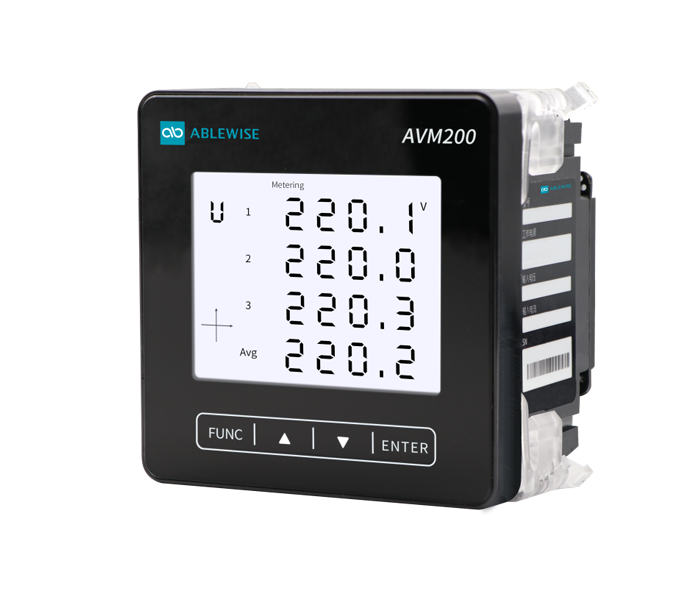

The AVM200 can measure including voltage, current, active power, reactive power, apparent power, power factor, frequency,harmonics,etc. It features Time of Use (TOU) recording, max/min value records, and offers additional functions. The unit can be expanded to include 4 Digital Inputs (DI) for switch status monitoring, 2 Relay Outputs (RO) for control, 3 terminal temperature measurements, or 2 Analog Outputs (AO).
| Parameters | Accuracy | Resolution | Range |
| Voltage | 0.2% | 0.1V | 10V～1000 kV |
| Current | 0.2% | 0.001A | 5 mA～50000 A |
| Active Power | 0.5% | 1W | -9999～9999 MW |
| Reactive Power | 0.5% | 1 var | -9999～9999 Mvar |
| Apparent Power | 0.5% | 1VA | 0～9999 MVA |
| Power Factor | 0.5% | 0.001 | -1.000～1.000 |
| Frequency | ±0.02 Hz | 0.01 Hz | 45～65 Hz |
| Active Energy | 0.5S | 0.1 kWh | 0～99999999.9 kWh |
| Reactive Energy | 1.0S | 0.1 kvarh | 0～99999999.9 kvarh |
| Apparent Energy | 0.5% | 0.1 kVAh | 0～99999999.9 kVAh |
| Harmonics | 1.0% | 0.01% | |
| Unbalance | 2.0% | 0.1% | 0.0%～100.0% |
| Phase Angle | 1.0% | 0.1° | 0.0°~359.9° |
| Running Time | - | 0.01h | 0～9999999.99 h |
| Temperature | ±2℃ | 0.1℃ | 0.0℃~125.0℃ |
|
Metering Phase-to-Neutral Voltage, Line-to-Line Voltage, Current Active Power, Reactive Power, Apparent Power, Power Factor Frequency Power Quality Voltage Unbalance, Current Unbalance THD, TOHD, TEHD and Individual Harmonics to 31st Crest Factor, THFF, K Factor Voltage and Current Phase Angles Energy and Energy Record Bi-Directional and Four Quadrant Total Energy Single-Phase Energy Daily and Monthly Energy Record Time of Use (TOU) Two TOU Settings can Automatically Switch at the Setting Time Four Tariffs, 12 Seasons, 14 Schedules Alarms Over or Under Setting Limit Up to 50 Power Measurement Parameters can be Set Alarm can Trigger the Relay Output, Screen Flashing |
Max/Min Record Max/Min Parameter Value and Time Stamp Parameter Sources: Voltage, Current, Power, Frequency, etc Peak Demand Record Multiple I/O Functions Digital Output: Energy Pulse Output Digital Input: Monitor Switch Status or Pulse Count; SOE Record Relay Output: Relay Command Control Output ON/OFF; Limit Alarm Control Output Analog Output Resistance Temperature Detectors (RTD) Suitable for Cables or Terminals Range: 0.0°C~125.0°C Communication RS485 Port Modbus RTU Protocol Display Large LCD, White Backlight View Metering Parameters, Energy, Power Quality and Setting Value
|
