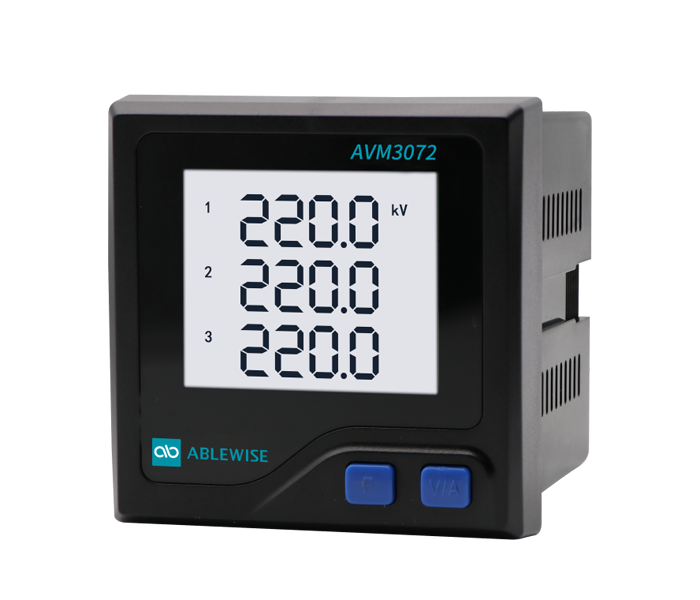

The AVM3072 is a compact, panel-mounted power and energy meter. It is especially suitable for medium and low voltage distribution, power equipment, power automation, factory automation and other fields. AVM3072 supports measurement of voltage, current, active power, reactive power, apparent power, power factor, frequency, energy, harmonics and other parameters, with TOU, max/min value recording.
| Parameters | Accuracy | Resolution | Range |
| Voltage | 0.2% | 0.1 V | 10V～1000 kV |
| Current | 0.2% | 0.001 A | 5 mA～50000 A |
| Active Power | 0.5% | 1W | -9999～9999 MW |
| Reactive Power | 0.5% | 1 var | -9999～9999 Mvar |
| Apparent Power | 0.5% | 1 VA | 0～9999 MVA |
| Power Factor | 0.5% | 0.001 | -1.000～1.000 |
| Frequency | ±0.02 Hz | 0.01 Hz | 45～65 Hz |
| Active Energy | 0.5S | 0.1 kWh | 0～99999999.9 kWh |
| Reactive Energy | 1.0S | 0.1 kvarh | 0～99999999.9 kvarh |
| Apparent Energy | 0.5% | 0.1 kVAh | 0～99999999.9 kVAh |
| Harmonics | 1.0% | 0.01% | |
| Unbalance | 2.0% | 0.1% | 0.0%～100.0% |
| Phase Angle | 1.0% | 0.1° | 0.0°~359.9° |
| Running Time | - | 0.01 h | 0～9999999.99 h |
|
Metering Phase-to-Neutral Voltage, Line-to-Line Voltage, Current Active Power, Reactive Power, Apparent Power, Power Factor Load Nature Four Quadrant Power and Energy Power Quality Voltage Unbalance, Current Unbalance THD, TOHD, TEHD and Individual Harmonics to 31st Voltage and Current Phase Angles Crest Factor, THFF, K Factor Energy and Energy Record Bi-Directional and Four-Quadrant Total Energy Single-Phase Energy Daily and Monthly Energy Recorde Alarms Over or Under Setting Limit Up to 50 Power Measurement Parameters can be Set Alarm can Trigger the Relay Output, Screen Flashing and Alarm Record |

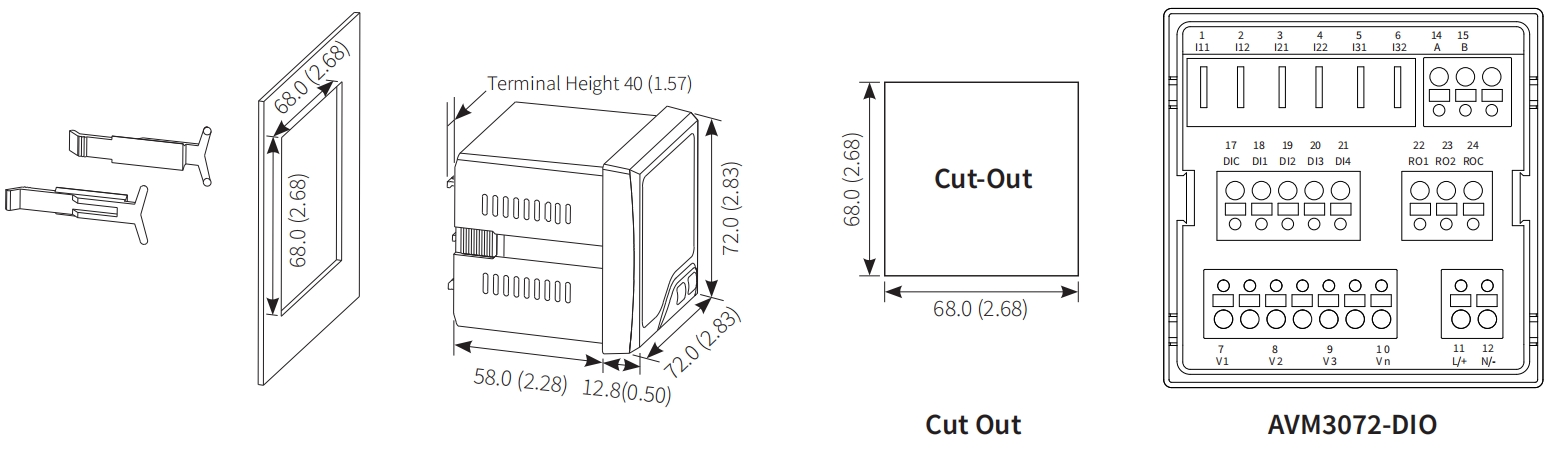

Max/Min Record Max/Min Parameter Value and Time Stamp Parameter Sources: Voltage, Current, Power, Frequency, etc Peak Demand Record Multiple I/O Functions Digital Input: Monitor Switch Status or Pulse Count; SOE Record Relay Output: Relay Command Control Output ON/OFF; Limit Alarm Control Output Time of Use（TOU） Four Tariffs, 12 Seasons, 14 Schedules Two TOU Settings can Automatically Switch at the Setting Tim Communication RS485 Port Modbus RTU Protocol Compact Design Dimension: 72.0×72.0×70.8 mm (Cutout: 68.0×68.0 mm) Saving Side Space
|
