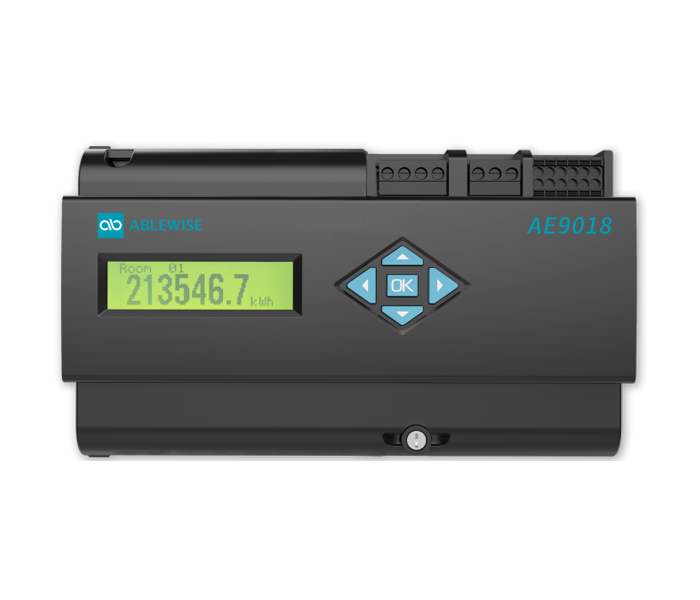

AE9018 is a cost-effective multi-circuit power and energy meter for metering and energy management applications in the incoming and outgoing lines of distribution boxes or outgoing lines of distribution cabinets. It has the advantages of low cost, space saving, convenient communication network, and easy wiring. AE9018 integrates 18 single-phase or 6 three-phase energy metering, parameter measurement and power quality monitoring functions. It has RS485, Ethernet and WIFI interfaces for easy access to intelligent energy management systems, and a wide range of I/O interfaces.
| Parameters | Accuracy | Resolution | Range |
| Active Energy | 0.2S | 0.1 kWh | 0～99999999.9 kWh |
| Reactive Energy | 0.5% | 0.1 kvarh | 0～99999999.9 kvarh |
| Apparent Energy | 0.5% | 0.1 kVAh | 0～99999999.9 kVAh |
| Voltage | 0.2% | 0.1V | 10～400V |
| Current | 0.2% | 0.001A | 5 mA～10000 A |
| Active Power | 0.2% | 0.1W | 4000.0 kW |
| Reactive Power | 0.5% | 0.1 var | 4000.0 kvar |
| Apparent Power | 0.5% | 0.1 VA | 4000.0 kVA |
| Power Factor | 0.5% | 0.001 | -1.000～1.000 |
| Frequency | ±0.02 Hz | 0.01Hz | 45～65 Hz |
| Active Power Demand | 0.5% | 0.1W | 4000.0 kW |
| Reactive Power Demand | 0.5% | 0.1 var | 4000.0 kvar |
| Apparent Power Demand | 0.5% | 0.1 VA | 4000.0 kVA |
| Current Demand | 0.2% | 0.001A | 5 mA～10000 A |
| Unbalance | 1.0% | 0.01% | 0～300% |
| Running Time | 0.01h | 0～999999.9h |
|
Complete Multi-Point Submetering Solution Measure 18 Single-Phase or 6 Three-Phase Circuits Real Time Monitoring Voltage, Current, Power, Frequency Accuracy: ANSI C12.20 Class 0.2 & IEC62053-22 0.2S Demand & Peak Demand: Total and Per-Circuit Power and Monthly Demand Metering Phase-to-Neutral Voltage, Line -to-Line Voltage, Current Active Power, Reactive Power, Apparent Power, Power Factor Frequency Power Quality Voltage Unbalance, Current Unbalance THD and Individual Harmonics to 31st K Factor, Crest Factor Voltage Sags, Voltage Swells can Trigger Power Quality Event Record Time of Use (TOU) Four Tariffs, 14 Seasons, 14 schedules Weekends and 10-Year Holiday Settings Sharp, Peak, Valley, Normal Energy and Max Demand Waveform Capture Simultaneous Capture of Voltage and Current Waveforms PQ Events can Trigger the Waveform Record Record 8 Cycles Before and After the Triggering Point Every Group Waveform |
Alarms Over or Under Setting Limit Power Measurement Parameters can be Set Alarm can Trigger the Relay Output, Screen Flashing and Alarm Record Data Logging 8 MB Memory Record Metering Parameter with Time Stamp Multiple I/O Functions Digital Output: Energy Pulse Output; 1 Pulse Per Second Digital Input: Monitor Switch Status or Pulse Count Relay Output: Relay Command Control Output ON/OFF; Limit Alarm Control Output Communication Ethernet Port WiFi Port Modbus RTU Protocol Via RS485 Port Support Modbus-TCP, SMTP, SNTP, HTTP Protocols
|
