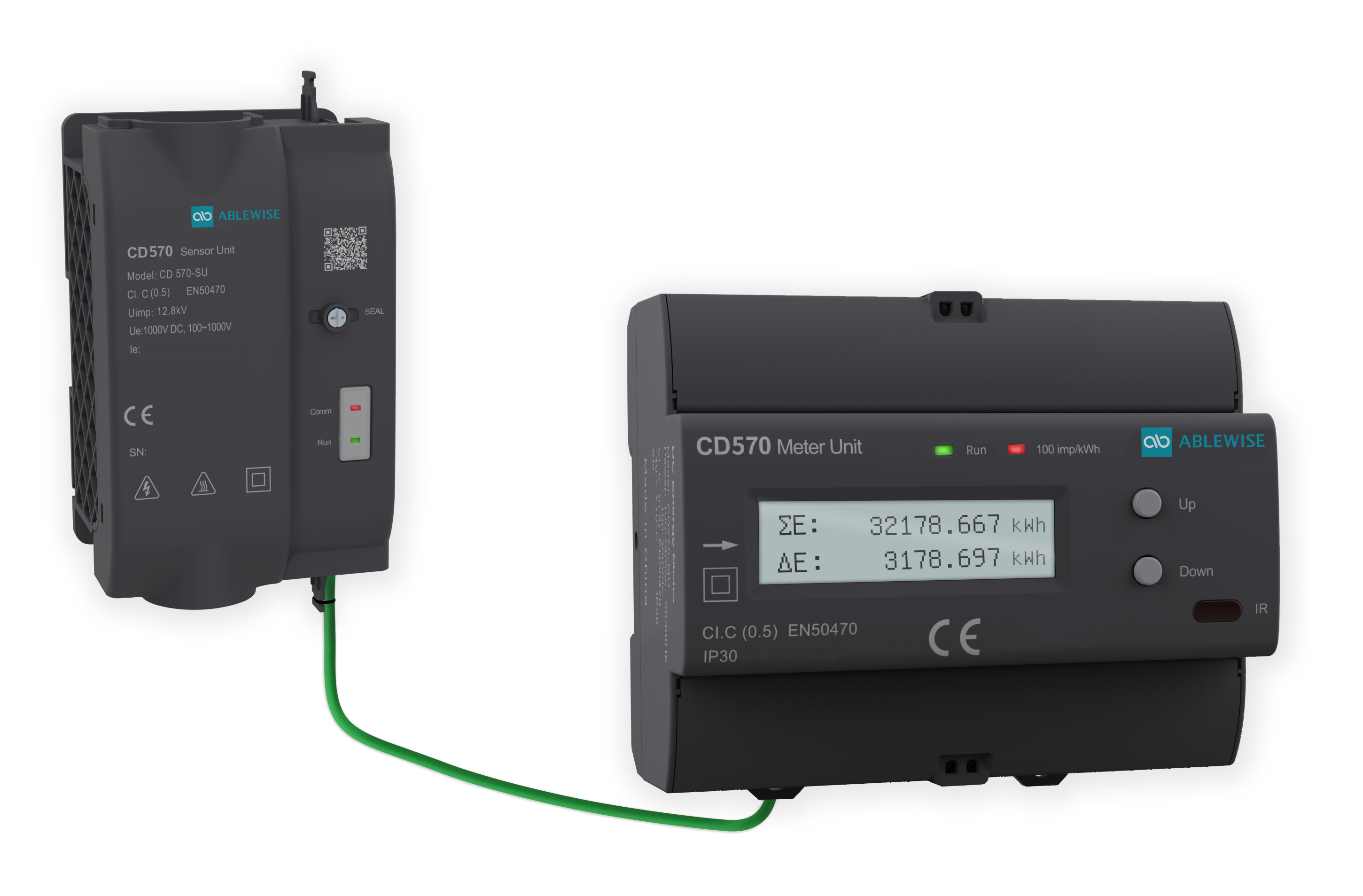

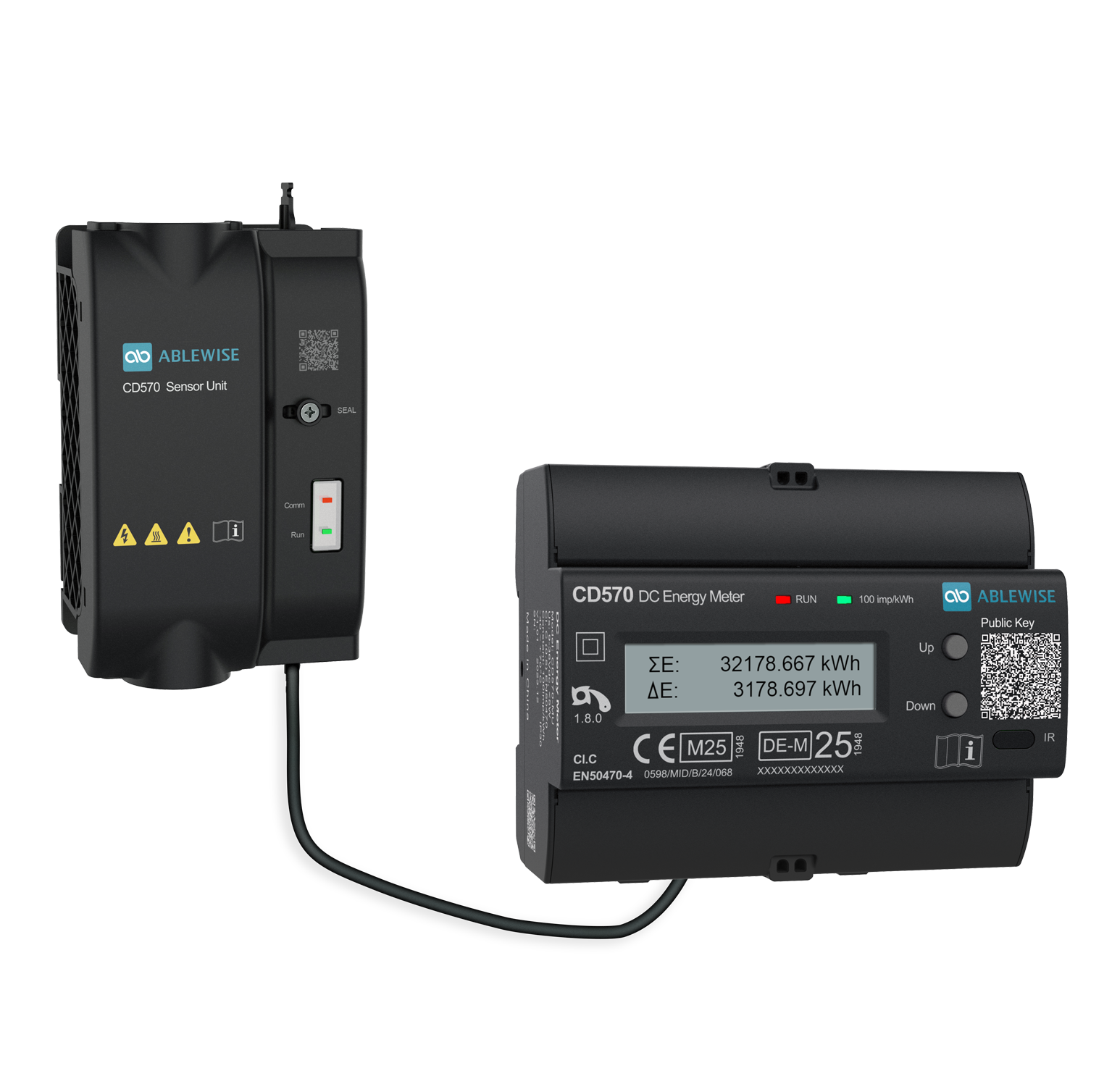

CD570 DC Energy Meter is specifically designed for EV charging. The energy accuracy can up to 0.5S. It has an internal integrated current sensor and insulation monitoring module, providing the latest highly integrated solutions for DC charging installations for electric vehicles. Complied with the latest IEC 62053-41:2021 standard for DC energy meters and charging stations, the accuracy is higher than other meters, including the shunt error up to 0.5 Class. Meeting CE, UL and MID certification requirements, the product is perfectly suitable for DC charging station.
| Parameter | Accuracy | Resolution | Range |
| Voltage | 0.2% | 0.1 V | 100～1150V DC |
| Current | 0.2% | 0.01 A | 2.4～600 A |
| Power | 0.5% | Settable,0.0001kW(Max) | 0～600 kW |
| Energy | IEC62053-41:0.5 EN 50470:CI.C(0.5) ANSI C12.32:CI.C(0.5) |
Settable,0.0001kWh(Max) | 0～99999999.9 kWh |
| Temperature | ±2℃ | 0.1℃ | -40～105℃ |
| Stability | <0.5 sec/day | - | - |
|
Metering Voltage Current Power Energy and Energy Record Bi-Directional Energy 12 Monthly Energy Record Each Transaction Energy Counter can be Recorded |
Time of Use (TOU) Four Tariffs, 12 Seasons, 14 Schedules Two TOU Settings can Automatically Switch at the Setting Time 12 Monthly TOU Energy Record Alarms Over or Under Setting Limit Voltage, Current, Voltage Ripple, Current Ripple, Temperature can Trigger Alarm
|
